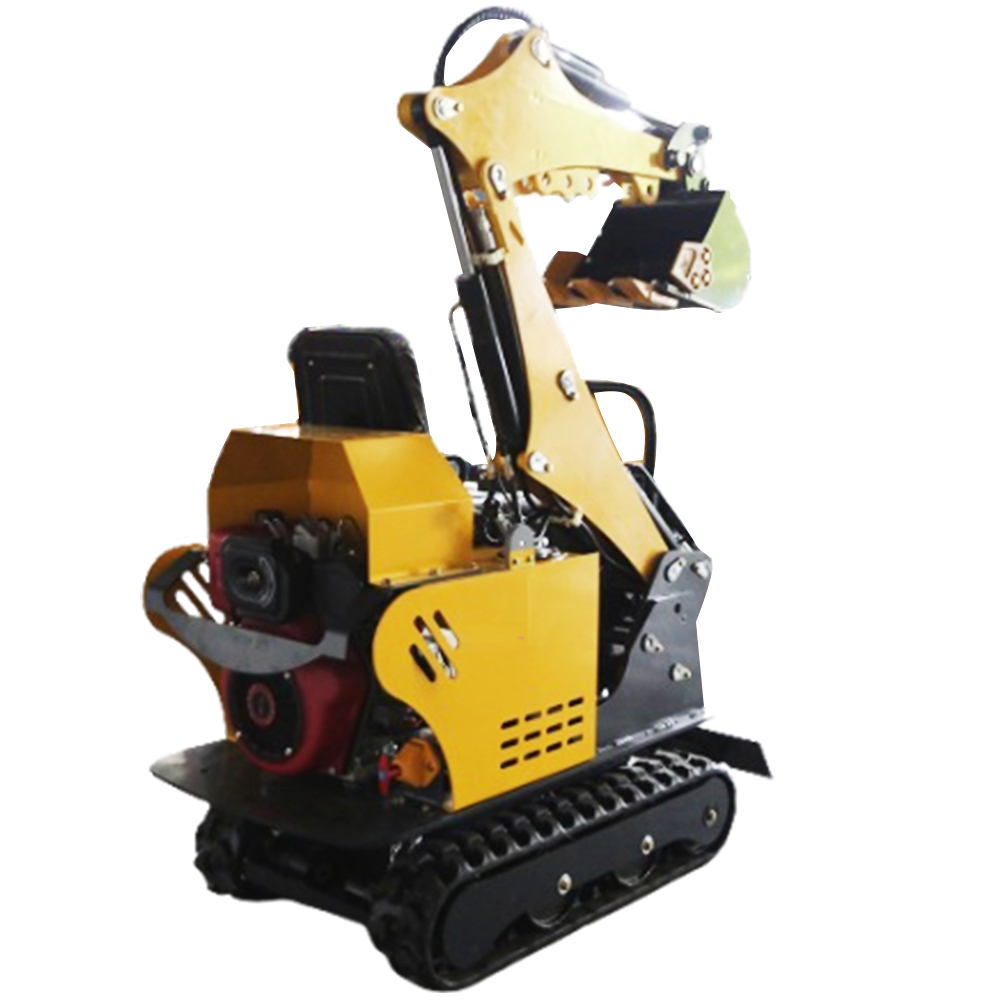

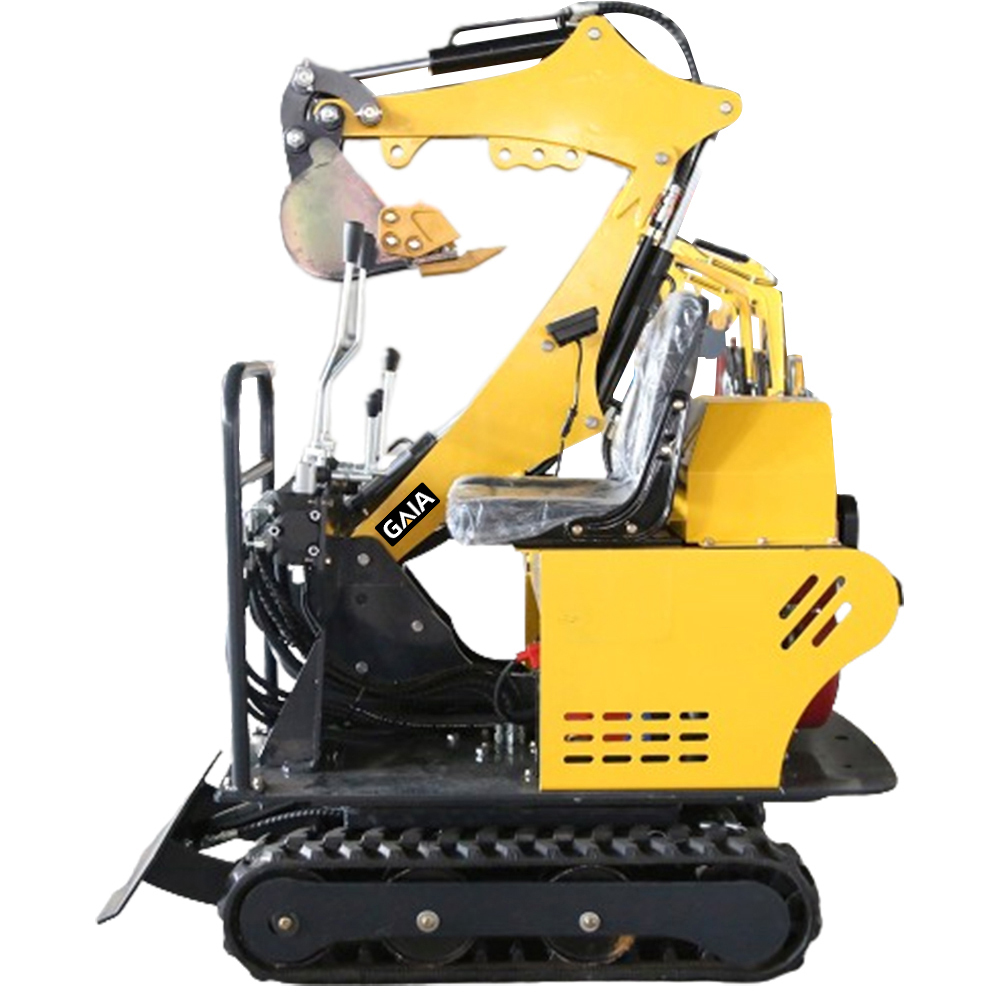

Mini Excavators GE-18
0.68 ton Mini Excavator B&S Engine
Support 1-Year Warranty
Lifetime Tech Support
Video online inspection
GE-18 mini excavator is widely used in small space operations, such as orchards, farms, and greenhouses, drill rock, break roads, ditch cleaning, and grab wood.
GE-18 Overview
Widely used in small space
Its compact design makes it the perfect choice for projects where space is limited, while the advanced hydraulic system ensures smooth and precise digging performance. With easy maintenance access and a user-friendly interface, this machine is built for efficiency. Whether used in landscaping, construction, or utility work, the mini excavator delivers power, control, and durability in one compact package.
960mm. Max. Digging Depth
Ensures reliable efficiency for everyday task
6 and More Attachments
Support more Attachments, meets all your construction Needs
30% Lower Ownership Costs
Top quality with low maintenance for high returns and less investment
Briggs & Stratton Efficient Engine
This mini digger features a premium Briggs & Stratton 11.5 hp engine for powerful yet fuel efficient operation and superior heat dispensation. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.
Multiple Attachments Adapted
It can be adapted to a variety of attachments, such as: Auger Drill Head, Hydraulic Breaker, Rakes,Wood Grabbers, Narrow Buckets, Quick Hitch etc. which can be used in various work scenarios to meet your needs
GE-18 Specifications
Key Specifications
|
Operating Weight |
680 - 720 kg |
|
Maximum Digging Height (A) |
2800 mm |
|
Maximum Dump Clearance (B) |
1880 mm |
|
Max. Digging Depth (C) |
960 mm |
|
Maximum Vertical Digging Depth (D) |
430 mm |
|
Maximum Digging Radius (E) |
2330 mm |
|
Minimum Turning Radius (F) |
730 mm |
|
Horsepower |
13.5 HP |
Engine
|
Engine Model |
Briggs & Stratton |
|
Horsepower |
13.5 kW |
|
Engine Fuel |
Gasoline (#90 or over) |
|
Emissions |
Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. |
|
Rated Speed |
3600 r/min |
Performance
|
Weight Class |
Half a ton |
|
Travel Speed - High |
2.7 - 3.5 km/h |
|
Minimum Ground Clearance |
100 mm |
|
Maximum Dig Depth |
960 mm |
|
Maximum Dump Clearance |
1730 mm |
|
Minimum Turning Radius |
730 mm |
|
Maximum Digging Radius |
2330 mm |
Capacities
|
Bucket Capacity |
0.02 m³ |
|
Fuel Tank Volume |
6.6 L |
|
Fuel Consumption |
1 L/h |
|
Fuel Type |
Gasoline (#90 or over) |
Hydraulic System
|
Hydraulic Tank Volume |
10.7 L |
|
Main Pump Flow |
N/A |
|
Rated Pressure |
13 MPa |
|
Max. Pressure |
20 MPa |
Dimension
|
Length |
2500 mm |
|
Width (b) |
720 mm |
|
Height (c) |
2000 mm |
|
Minimum Ground Clearance |
100 mm |
|
Maximum Vertical Dig Depth |
430 mm |
|
Wooden Length (a) |
2700 mm |
|
Track (g) |
860 mm |
|
Gauge Width (h) |
550 mm |
|
Platform Ground Clearance (i) |
350 mm |
|
Turntable Width (d) |
700 mm |
|
Total Chassis Width (e) |
720 mm |
Features
|
Certifications |
CE, ISO9001:2015 |
|
Air Conditioning |
Not Applicable |
|
Cab Enclosure |
Optional |
|
Quick Tach System |
Optional |
|
Rubber Track |
Standard |
|
Optional Engine |
B&S | HONDAG | Kubota | Changchai | Coop |
|
Telescopic Side Swing |
Not Applicable |
|
Operation Type |
Mechanical |
GE-18 Attachments
Buckets - Width Teeth
Wood Grabbers
Hydraulic Breaker
Hydraulic Auger Drill
Thumb Grab Bucket
