Mini Excavators GE-18
13.5HP Mini Excavator B&S Engine
Support 1-Year Warranty
Lifetime Tech Support
Video online inspection

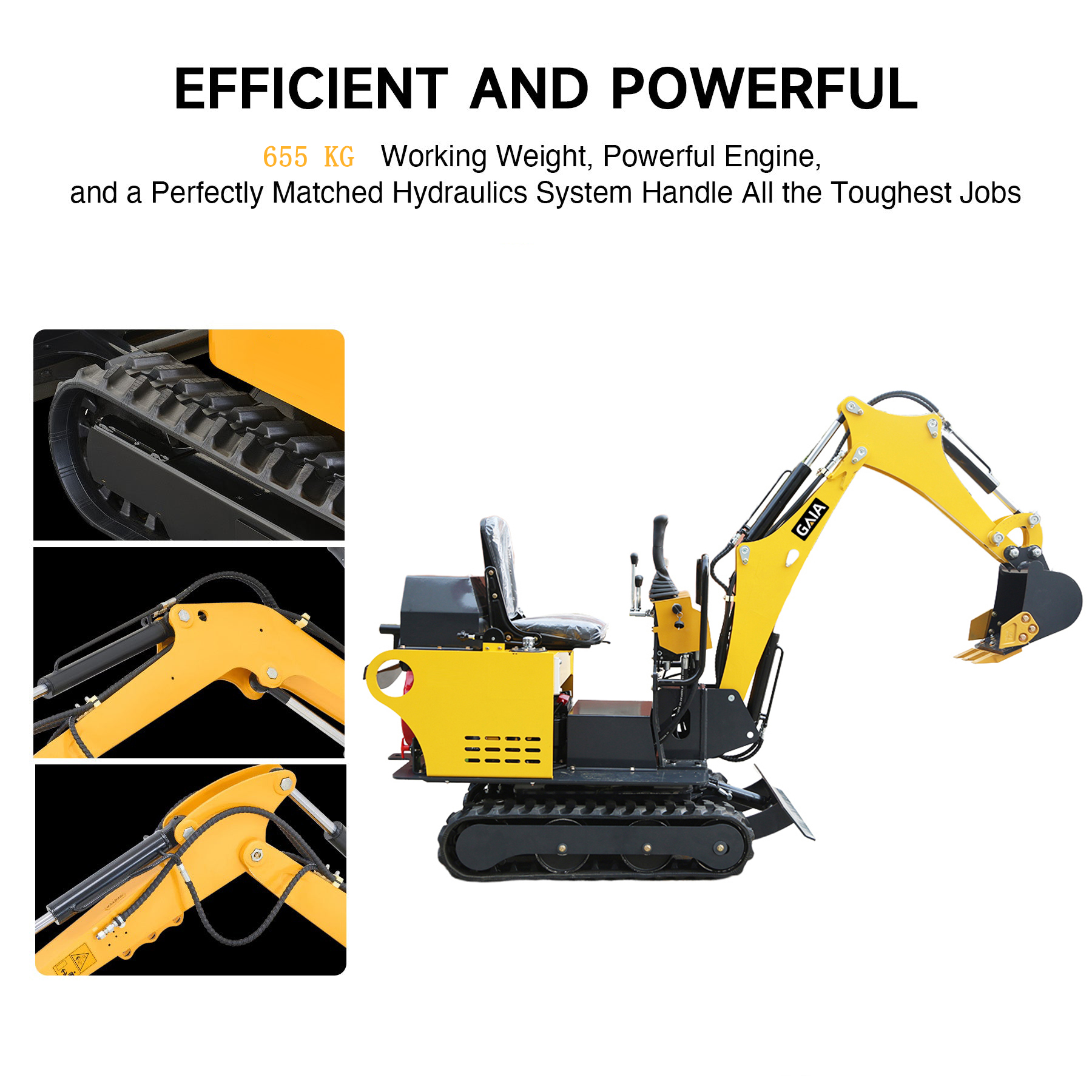

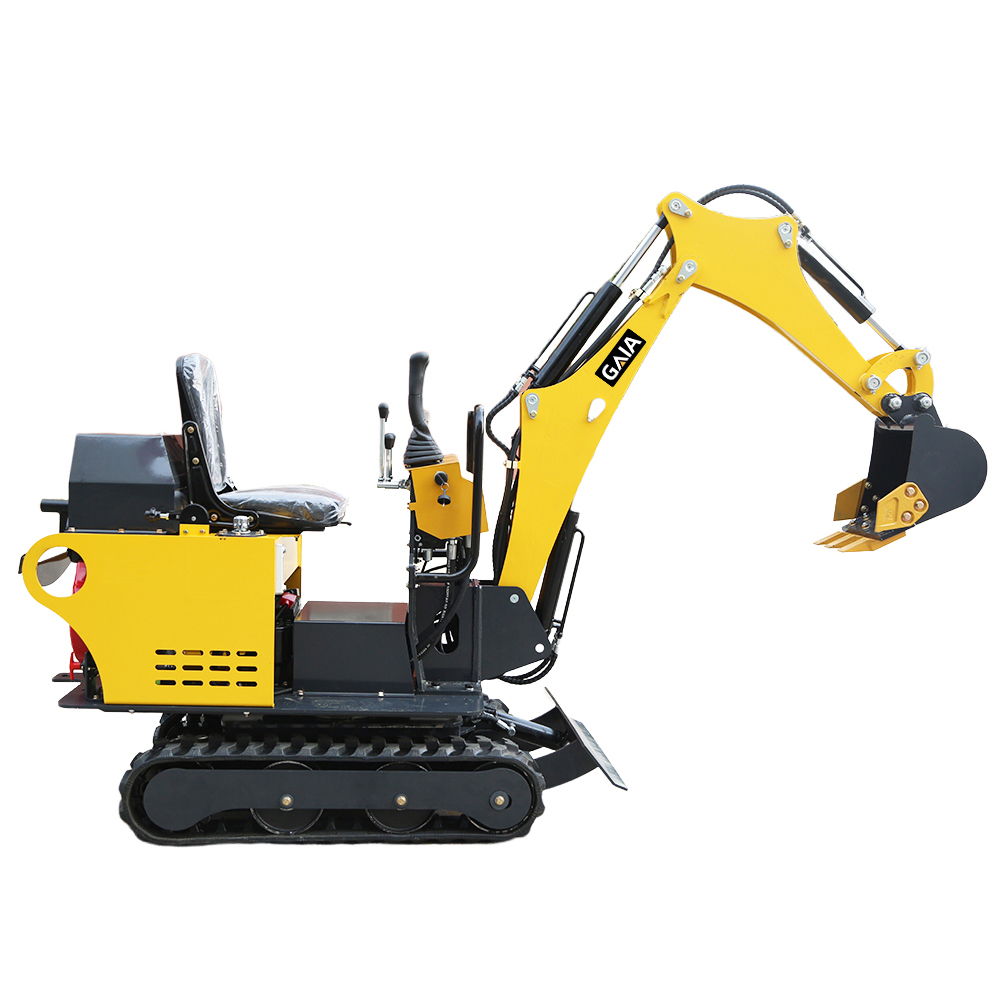

GE16 excavator is perfect for small to medium construction jobs where space is limited. Equipped with advanced hydraulic systems and a reinforced structure, it offers excellent stability and precision.
GE-16 Overview
Mini Digger for Narrow & Tight Spaces
13.5 HP mini excavator combines power and versatility. With a 900-mm digging depth, reduced tail-swing design, and rear counterweight for added stability, it excels in tight spaces. Compatible with a wide range of attachments, Compatible with a wide range of attachments, including six attachments – augers, crushers, rakes, grapples, narrow buckets and quick hinges – there is something for all your needs.
900mm. Max. Digging Depth
Ensures reliable efficiency for everyday task
6 and More Attachments
Support more Attachments, meets all your construction Needs
30% Lower Ownership Costs
Top quality with low maintenance for high returns and less investment
Briggs & Stratton Efficient Engine
This mini digger features a premium Briggs & Stratton 11.5 hp engine for powerful yet fuel efficient operation and superior heat dispensation. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.

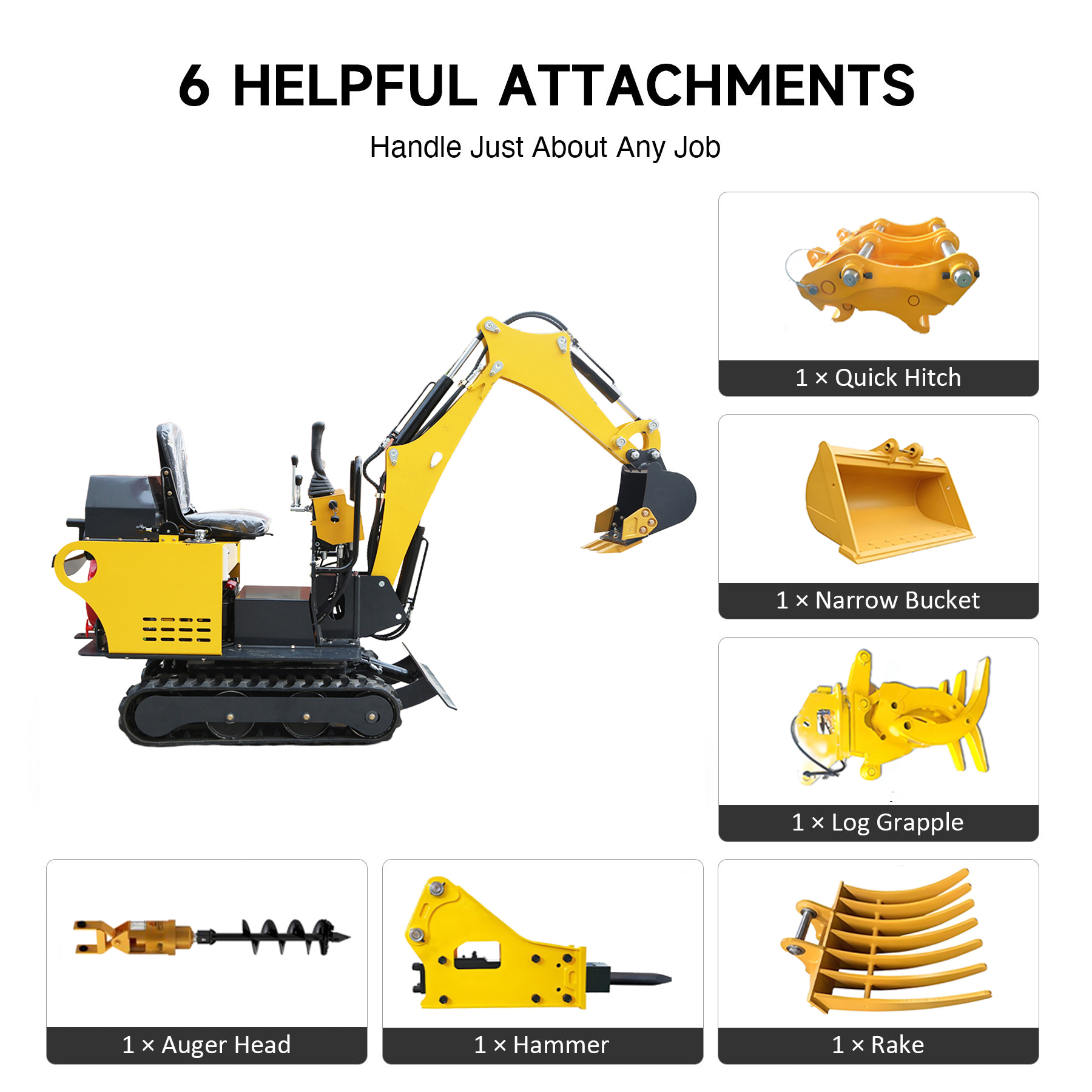

Multiple Attachments Adapted
It can be adapted to a variety of attachments, such as: Auger Drill Head, Hydraulic Breaker, Rakes,Wood Grabbers, Narrow Buckets, Quick Hitch etc. which can be used in various work scenarios to meet your needs
GE-16 Specifications
Key Specifications
|
Operating Weight |
630 - 680 kg |
|
Maximum Digging Height (A) |
2460 mm |
|
Maximum Dump Clearance (B) |
1370 mm |
|
Max. Digging Depth (C) |
900 mm |
|
Maximum Vertical Digging Depth (D) |
340 mm |
|
Maximum Digging Radius (E) |
2490 mm |
|
Minimum Turning Radius (F) |
1400 mm |
|
Horsepower |
13.5 HP （ 10.0 kW ) |
Engine
|
Engine Model |
Briggs & Stratton |
|
Engine Power |
10.0 kW |
|
Engine Fuel |
Gasoline (#90 or over) |
|
Emissions |
Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. |
|
Rated Speed |
3600 r/min |
Performance
|
Weight Class |
Half a ton |
|
Travel Speed |
2.7 - 3.0 km/h |
|
Maximum Dig Depth |
900 mm |
|
Maximum Dump Clearance |
100 mm |
|
Minimum Turning Radius |
1440 mm |
|
Maximum Digging Radius |
2490 mm |
Capacities
|
Bucket Capacity |
0.02 m³ |
|
Fuel Tank Volume |
6.6 L |
|
Fuel Consumption |
1 L/h |
|
Fuel Type |
Gasoline (#90 or over) |
Hydraulic System
|
Hydraulic Tank Volume |
10.7 L |
|
Main Pump Flow |
N/A |
|
Rated Pressure |
13 MPa |
|
Max. Pressure |
20 MPa |
Dimension
|
Length |
2000 mm |
|
Width (b) |
720 mm |
|
Height (c) |
2000 mm |
|
Minimum Ground Clearancet |
100 mm |
|
Maximum Vertical Dig Depth |
340 mm |
|
Maximum Digging Radius |
2490 mm |
|
Wooden Length (a) |
2800 mm |
|
Track (g) |
860 mm |
|
Gauge Width (h) |
550 mm |
|
Platform Ground Clearance (i) |
350 mm |
|
Turntable Width (d) |
700 mm |
|
Total Chassis Width (e) |
720 mm |
Features
|
Certifications |
CE, ISO9001:2015 |
|
Air Conditioning |
Not Applicable |
|
Cab Enclosure |
Optional |
|
Quick Tach System |
Optional |
|
Rubber Track |
Standard |
|
Optional Engine |
B&S | HONDAG | Kubota | Changchai | Coop |
|
Telescopic Side Swing |
Not Applicable |
|
Operation Type |
Mechanical |
GE-16 Attachments
Buckets - Width Teeth
Wood Grabbers
Hydraulic Breaker
Hydraulic Auger Drill
Thumb Grab Bucket
