Electric Forklift GF-48T
Mini size, maximum versatility – perfect for landscaping and construction.
Support 1-Year Warranty
Lifetime Tech Support
Video Outgoing-inspection

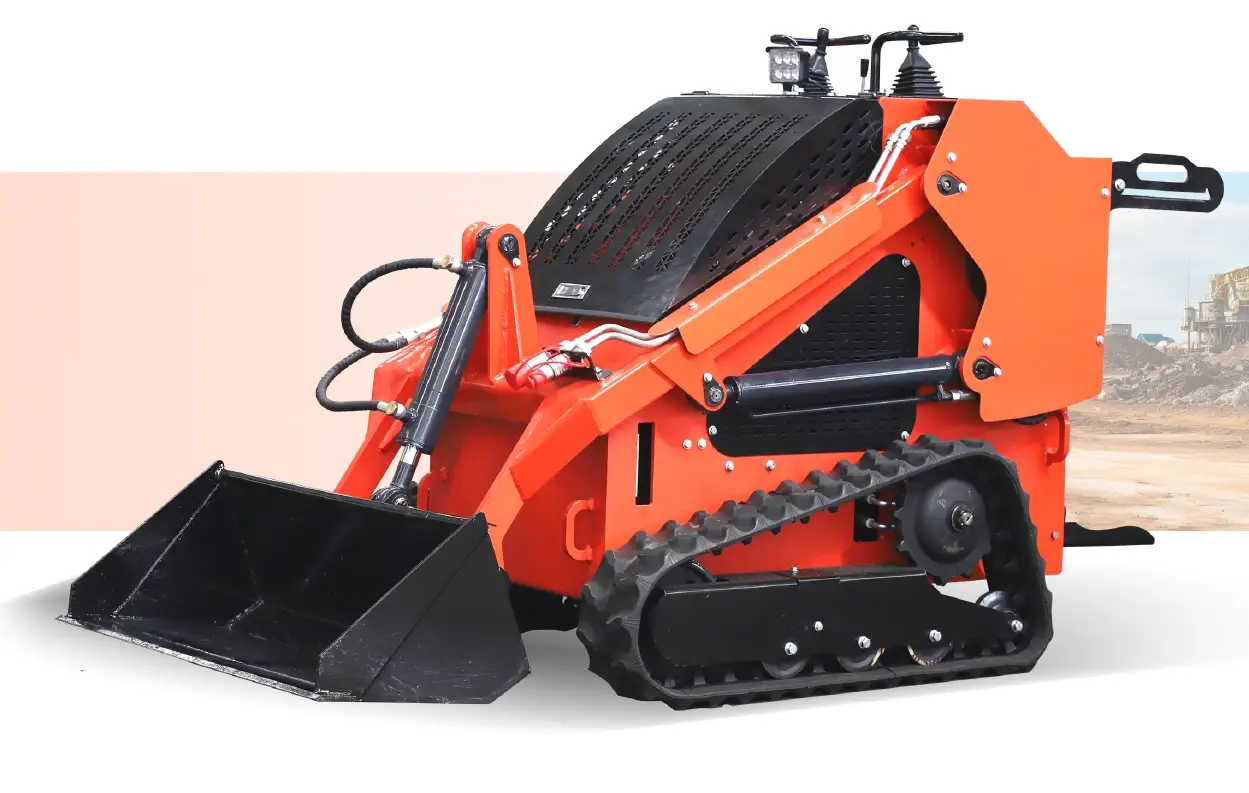

GS-48T is a powerful, compact machine designed to tackle tough jobs in confined spaces. It’s perfect for urban construction, landscaping, and agricultural applications where space is limited.
GS-48T Overview
Combines Strong Performance with Excellent Fuel Efficiency
With its high power-to-size ratio, this loader combines strong performance with excellent fuel efficiency, reducing operating costs. It features a quick-swap attachment system that allows you to easily switch between buckets, augers, and more, making it a highly versatile tool for different tasks.
User-Friendly Controls
Intuitive and easy-to-use controls minimize learning curves and boost productivity.
Versatile Attachment Options
Compatible with multiple attachments like buckets, augers, and trenchers for various applications.
30% Lower Ownership Costs
Top quality with low maintenance for high returns and less investment
user-friendly controls
Built with a durable frame and precise hydraulics, the mini skid steer offers smooth operation and reliable performance on rough terrain. Its low noise levels and user-friendly controls enhance operator comfort and efficiency, making it an ideal solution for productivity in demanding work environments.
GS-48T Specifications
Key Specifications
|
Operating Weight |
1200 kg |
|
Maximum Operating Capacity |
480 kg |
|
Maximum Breakout Force |
450 KN |
|
Rated Operating Capacity |
350 kg |
|
Bucket Capacity |
0.12 m³ |
|
Total Cycling Time |
9 s |
|
Driving Speed - High |
6 km/h |
|
Rated Power |
15 - 18 kW |
Engine
|
Engine Model |
YANMAR |
|
Engine Power |
20 -25 HP |
|
Fuel Tank Capcity |
13 L |
|
Displacement |
639 CC |
|
Air Intake Way |
Naturally Aspirated |
|
Emissions |
EPA |
|
Driving Speed |
0 - 6 km/h |
|
Rated Speed |
2500 - 3000 r/min |
|
System Operating Pressure |
17 -21 bar |
Dimension
|
Maximum Extension Height |
2450 mm |
|
Height To Bucket Hinge Pin |
1870 mm |
|
Vehicle Height |
1000 - 1350 mm |
|
Dumping Height |
1510 mm |
|
Overall Length with GP Bucket |
2206 mm |
|
Overall Length Without Bucket |
1680 mm |
|
Wheelbase |
850 mm |
|
Mini Ground Clearance |
150 mm |
|
Max. Height Unloading Angle
|
34 ° |
|
Angle Of Departure |
27 ° |
|
Bucket Flip Angle (Top) |
114 ° |
|
Vehicle Width |
1100 -1350 mm |
|
Bucket Width |
1000 mm |
|
Tyre Size |
18 * 72 |
Hydraulic System
|
Working System Pressure |
N/A |
|
Working System Flow Rate |
N/A |
|
Driving System Pressure |
N/A |
|
Driving System Flow Rate |
N/A |
Features
|
Certifications |
ISO9001:2015 |
|
Air Conditioning |
Not Applicable |
|
Cab Enclosure |
Not Applicable |
|
Quick Tach System |
Not Applicable |
