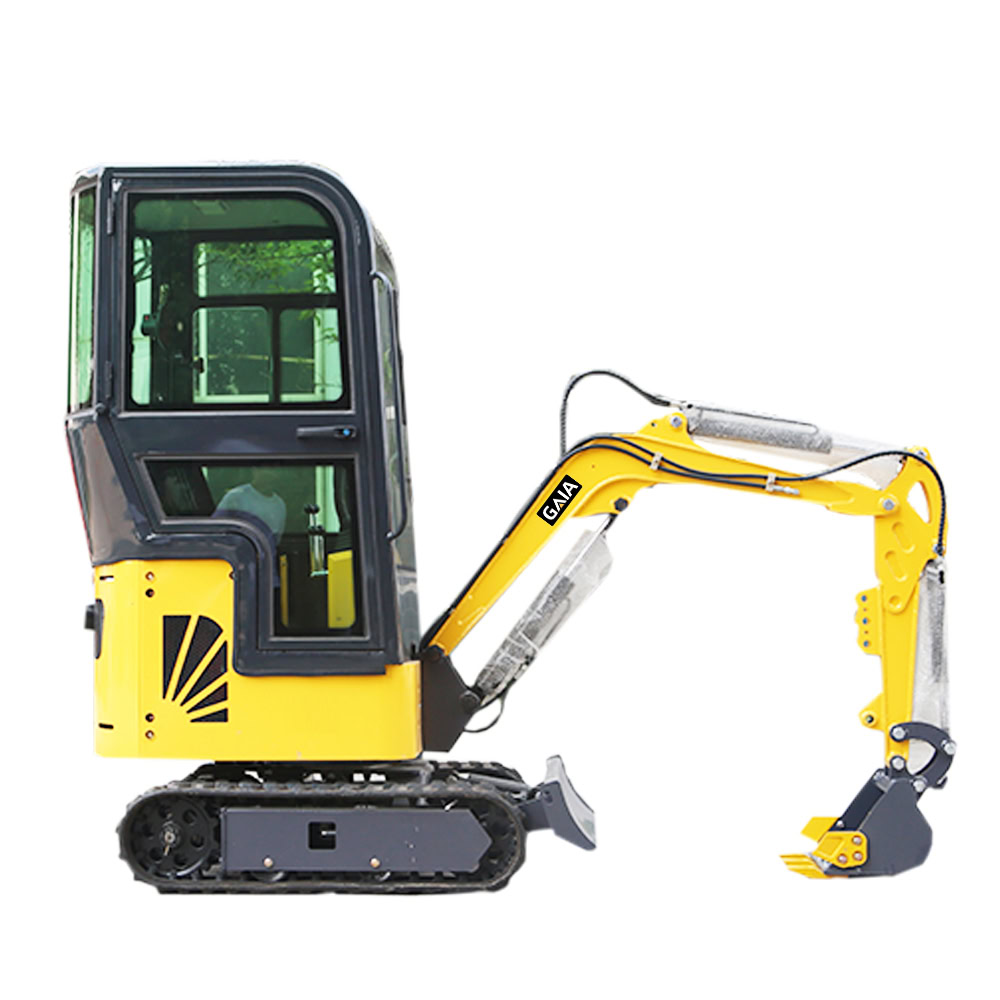

Mini Excavators GE-26
15.6 kW Mini Excavator HONDA GX Engine
Support 1-Year Warranty
Lifetime Tech Support
Video online inspection
ge-26 excavator is designed to meet the demands of small and medium-sized projects, offering a balance of power and precision. Its compact build allows it to work efficiently in tight spaces without sacrificing digging depth or power.
GE-26 Overview
Efficiency and Operator Comfort
This excavator is designed to meet the demands of small and medium-sized projects, offering a balance of power and precision. Its compact build allows it to work efficiently in tight spaces without sacrificing digging depth or power. With a focus on fuel efficiency and operator comfort, this machine is ideal for a wide range of applications, including landscaping, trenching, and utility work. The durable construction ensures long-lasting performance, making it a reliable choice for both residential and commercial job sites.
Robust Durability
Built to withstand tough working conditions and long hours.
6 and More Attachments
Support more Attachments, meets all your construction Needs
30% Lower Ownership Costs
Top quality with low maintenance for high returns and less investment

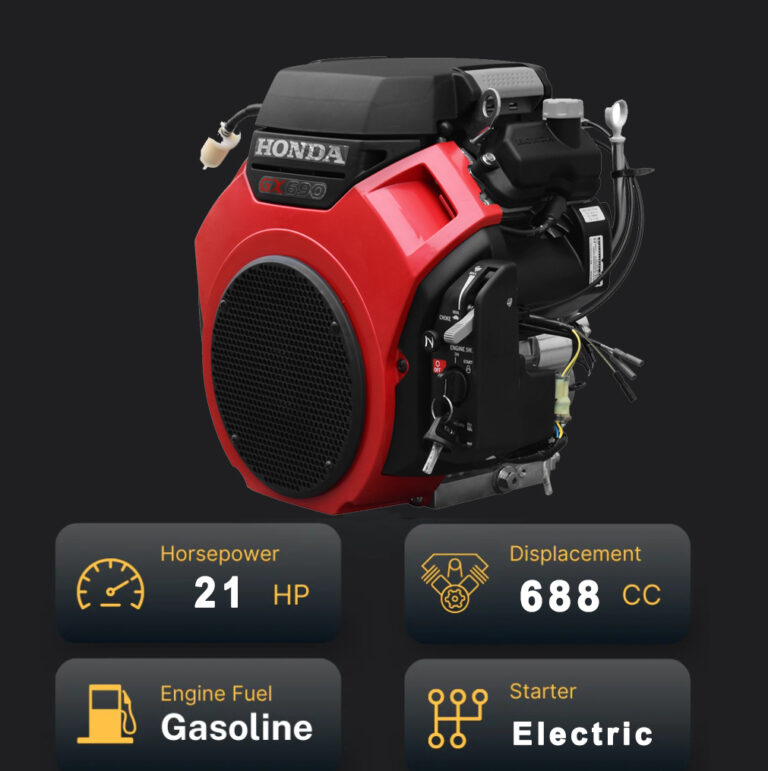

HONDA Efficient Engine
This mini digger features a premium HONDA 21 hp engine for powerful yet fuel efficient operation and superior heat dispensation. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.

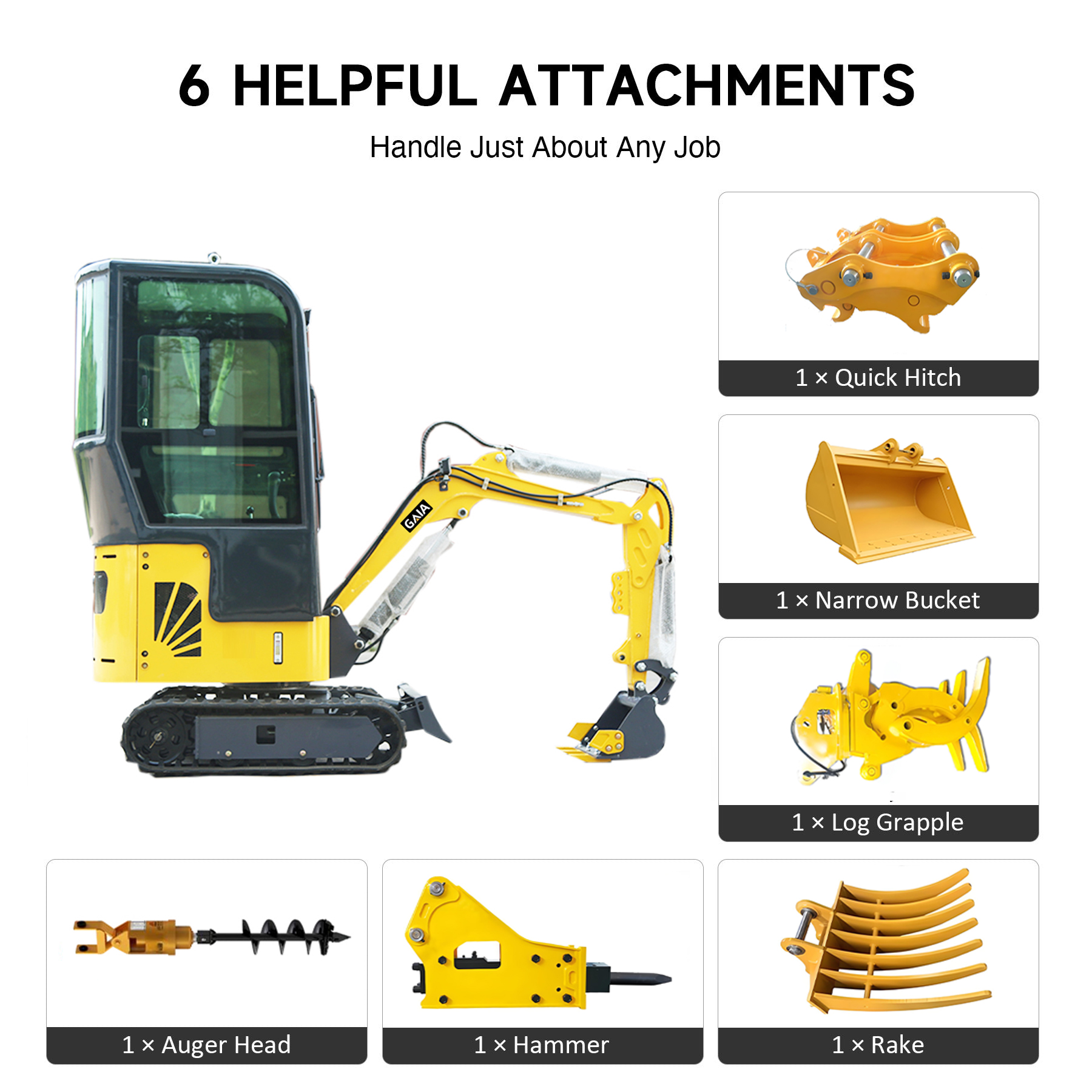

Multiple Attachments Adapted
It can be adapted to a variety of attachments, such as: Auger Drill Head, Hydraulic Breaker, Rakes,Wood Grabbers, Narrow Buckets, Quick Hitch etc. which can be used in various work scenarios to meet your needs
GE-26 Specifications
Key Specifications
|
Operating Weight |
1000 - 1150 kg |
|
Maximum Digging Height (A) |
2885 mm |
|
Maximum Dump Clearance (B) |
1974 mm |
|
Max. Digging Depth (C) |
1813 mm |
|
Maximum Vertical Digging Depth (D) |
1720 mm |
|
Maximum Digging Radius (E) |
2676 mm |
|
Minimum Turning Radius (F) |
1450 mm |
|
Horsepower |
21.0 HP |
Engine
|
Engine Model |
HONDA |
|
Engine Power |
14 - 17 kW |
|
Engine Fuel |
Gasoline, Unleaded 86 octane or higher |
|
Emissions |
EU Stage V emission standards. |
|
Rated Speed |
3600 r/min |
Performance
|
Weight Class |
1 ton |
|
Travel Speed - High |
N/A |
|
Minimum Ground Clearance |
127 mm |
|
Maximum Dump Clearance |
1974 mm |
|
Minimum Turning Radius |
1450 mm |
|
Maximum Digging Radius |
2676 mm |
Capacities
|
Bucket Capacity |
0.025 m³ |
|
Fuel Tank Volume |
10 L |
|
Fuel Consumption |
N/A |
|
Fuel Type |
Gasoline |
Hydraulic System
|
Hydraulic Tank Volume |
N/A |
|
Main Pump Flow |
N/A |
|
Rated Pressure |
N/A |
|
Max. Pressure |
N/A |
Dimension
|
Length |
2220 mm |
|
Width (b) |
925 mm |
|
Height (c) |
2410 mm |
|
Maximum Vertical Dig Depth |
1720 mm |
|
Maximum Digging Radius |
2676 mm |
|
Wooden Length (a) |
2960 mm |
|
Track (g) |
915 mm |
|
Gauge Width (h) |
742 mm |
|
Platform Ground Clearance (i) |
370 mm |
|
Turntable Width (d) |
905 mm |
|
Total Chassis Width (e) |
925 mm |
Features
|
Certifications |
CE, ISO9001:2015 |
|
Air Conditioning |
Optional |
|
Cab Enclosure |
Optional |
|
Quick Tach System |
Optional |
|
Rubber Track |
Standard |
|
Optional Engine |
B&S | HONDA | Kubota |
|
Telescopic Side Swing |
Not Applicable |
|
Operation Type |
Mechanical |
GE-26 Attachments
Buckets - Width Teeth
Wood Grabbers
Hydraulic Breaker
Hydraulic Auger Drill
Thumb Grab Bucket
