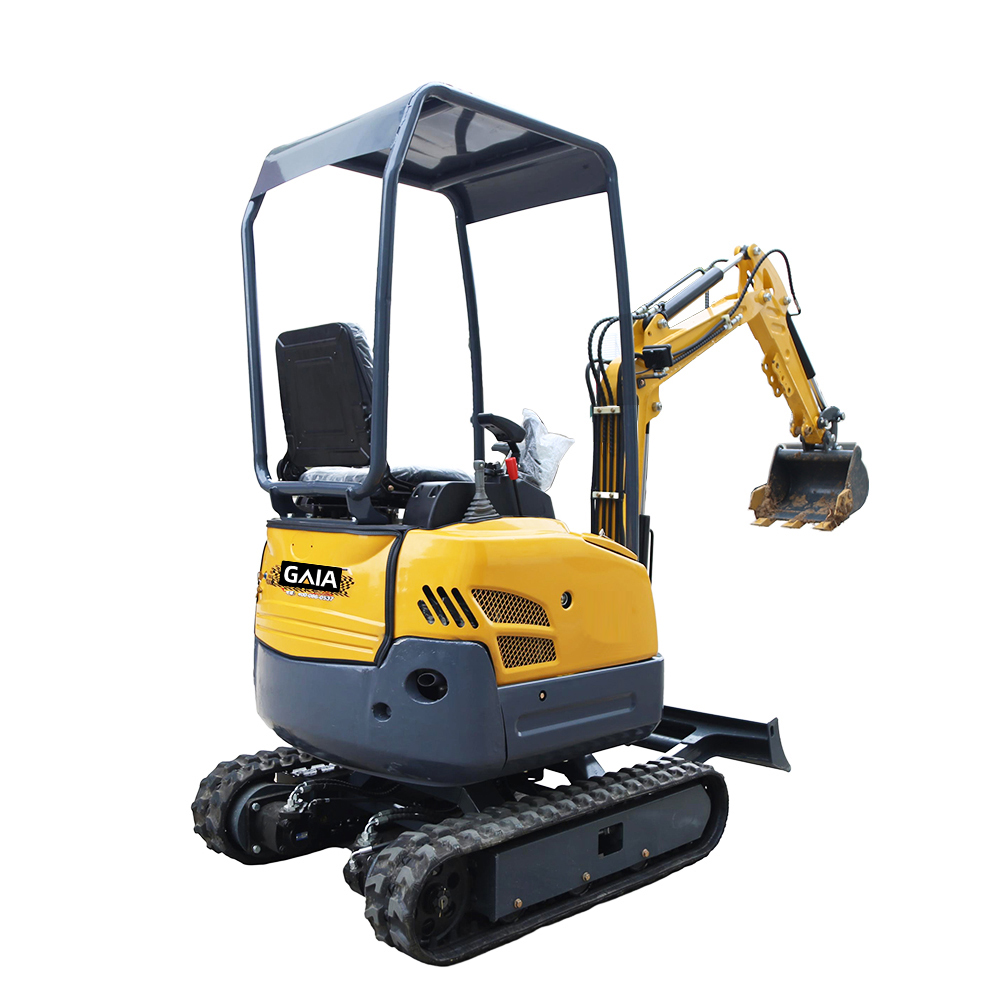

Mini Excavators GE-30

1.2 ton Mini Excavator Kubota Engine

Excavator Model:
GE-30
Engine Power:
20 HP / 3600 rpm
Operating Weight:
1245 - 1300 kg
Support 1-Year Warranty
Lifetime Tech Support
Video online inspection

GE-30 the powerful engine and robust hydraulic system ensure smooth, efficient digging and lifting. With multiple attachment options, it can handle a variety of tasks, from trenching to landscaping.

REQUEST A PRICE

GE-30 Overview

Powerful engine and robust hydraulic system ensure smooth

GE-30 is engineered to deliver exceptional performance in both residential and commercial projects. Its small footprint allows access to tight spaces, while the powerful engine and robust hydraulic system ensure smooth, efficient digging and lifting. With multiple attachment options, it can handle a variety of tasks, from trenching to landscaping. The machine’s operator-friendly design, along with its low maintenance needs, makes it a reliable choice for any job site, ensuring maximum productivity and minimal hassle.

  • Powerful Engine

    Provides high torque and digging force for tough tasks.

  • Smooth Control

    Advanced hydraulics offer precision in movement and digging.

  • Low Maintenance

    Designed for easy servicing and minimal downtime.

Ease of Use

Simple controls make operation intuitive for all users.

6 and More Attachments

Support more Attachments, meets all your construction Needs

30% Lower Ownership Costs

Top quality with low maintenance for high returns and less investment

Kubota Efficient Engine

This mini digger features a premium Briggs & Stratton 20.0 HP / 3600 rpm engine for powerful yet fuel efficient operation and superior heat dispensation. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.

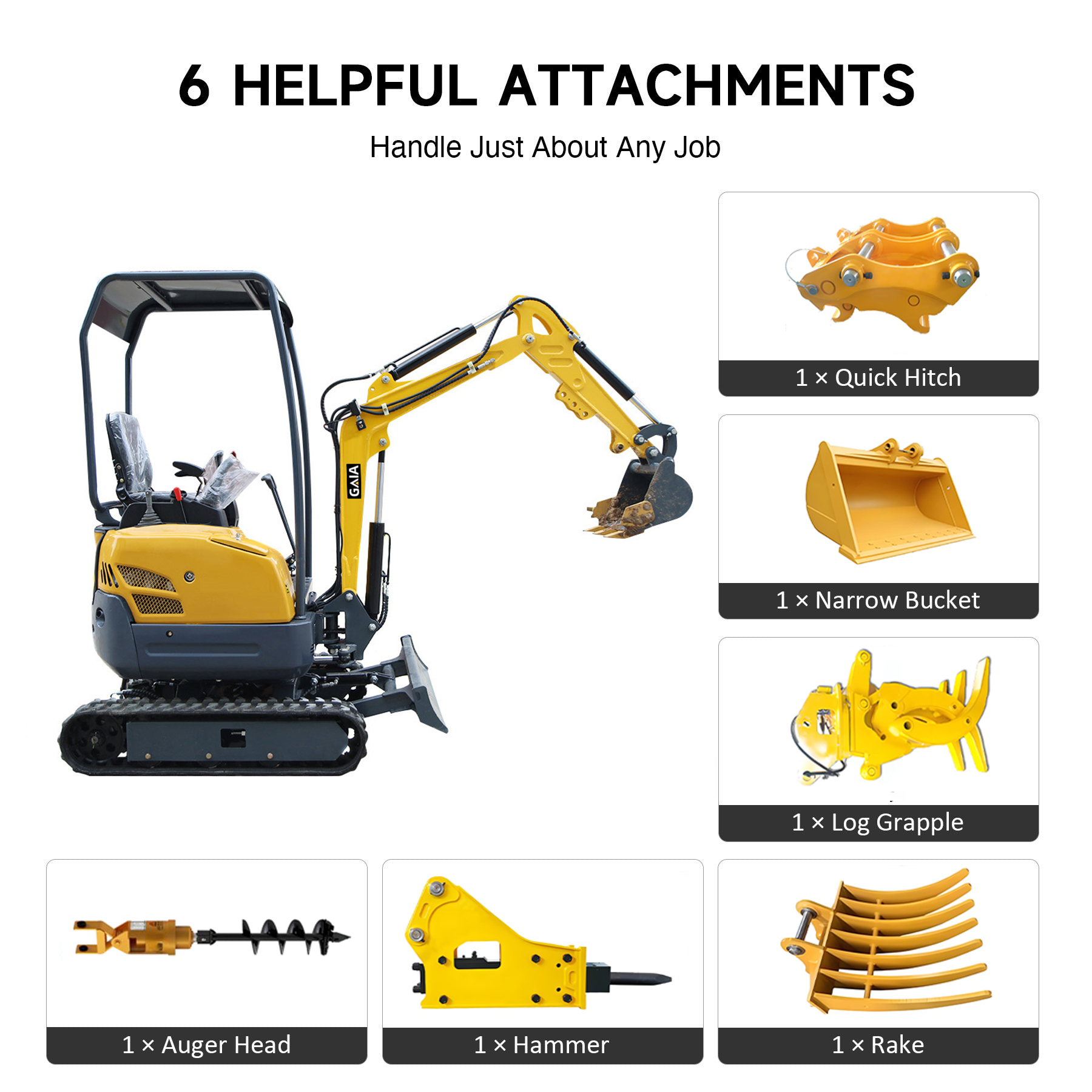

Multiple Attachments Adapted

It can be adapted to a variety of attachments, such as: Auger Drill Head, Hydraulic Breaker, Rakes,Wood Grabbers, Narrow Buckets, Quick Hitch etc. which can be used in various work scenarios to meet your needs

GE-30 Specifications

Key Specifications
Operating Weight
1245 - 1300 kg
Maximum Digging Height (A)
2690 mm
Maximum Dump Clearance (B)
1780 mm
Max. Digging Depth (C)
1715 mm
Maximum Vertical Digging Depth (D)
1585 mm
Maximum Digging Radius (E)
3150 mm
Minimum Turning Radius (F)
1587 mm
Horsepower
20.0 HP
Engine Model
Kubota
Engine Power
15.0 kW (20HP)
Engine Fuel
Diesel
Emissions
Meets U.S. EPA Tier 4 Final

Rated Speed
3600 r/min
Weight Class
1 ton
Travel Speed - High
2.9  - 4.0 km/h
Track Width ( f )
180 mm
Track ( g )
1082 mm
Maximum Dump Clearance
1780 mm
Minimum Turning Radius
1587 mm
Maximum Digging Radius
3150 mm
Bucket Capacity
0.025 m³
Fuel Tank Volume
12.5 L
Fuel Consumption
N/A
Fuel Type
Diesel
Hydraulic Tank Volume
10.7 L
Main Pump Flow
N/A
Rated Pressure
13 MPa
Max. Pressure
20 MPa
Length
2350 mm
Width (b)
1100 mm
Height (c)
2240 mm
Maximum Dig Height
2690 mm
Maximum Vertical Dig Depth
340 mm
Maximum Digging Radius
2490 mm
Wooden Length (a)
2890 mm
Gauge Width (h)
895 mm
Platform Ground Clearance (i)
400 mm
Turntable Width (d)
990 mm
Total Chassis Width (e)
1100 mm
Certifications
CE, ISO9001:2015
Air Conditioning
Optional
Cab Enclosure
Optional
Quick Tach System
Optional

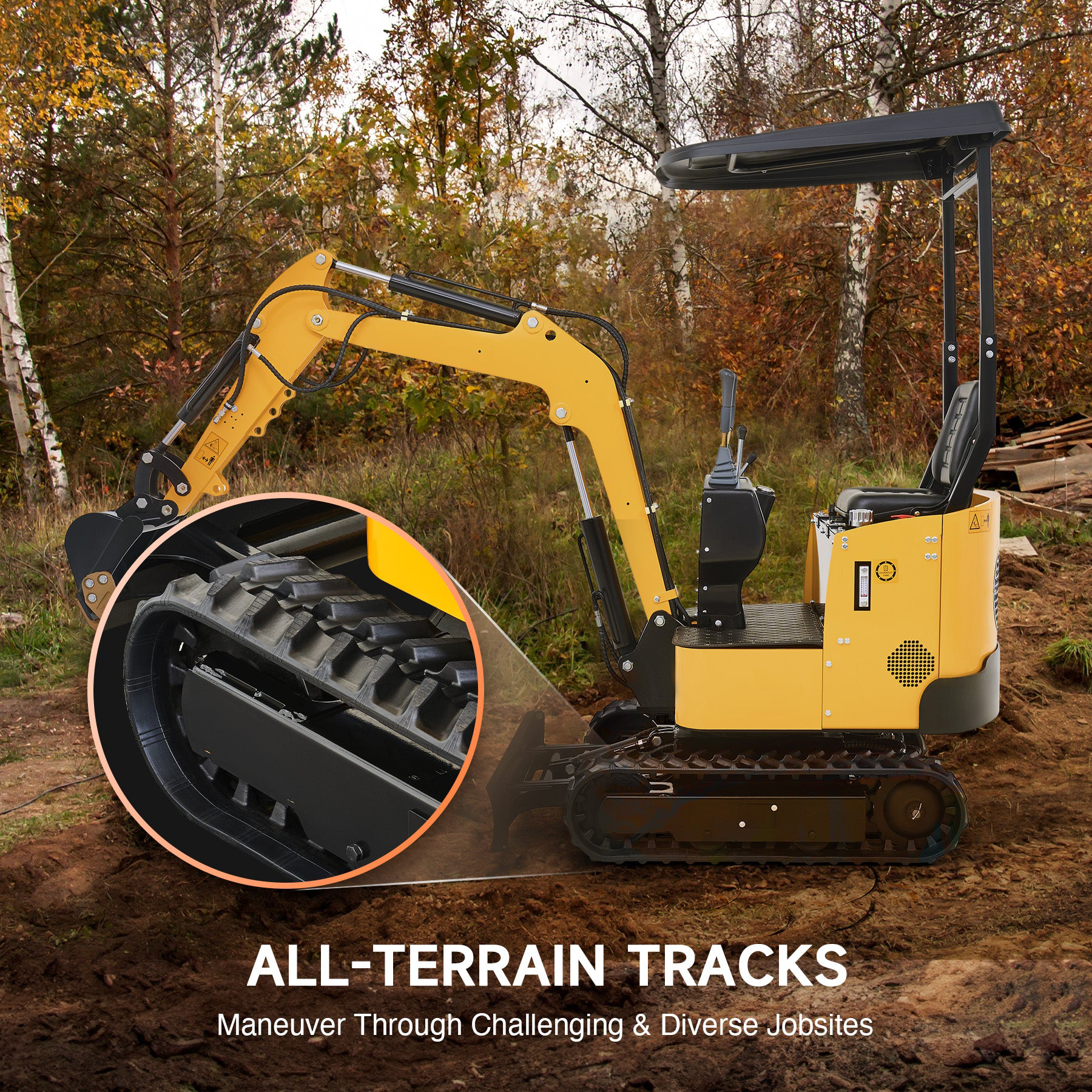

Rubber Track
Standard
Optional Engine
B&S | HONDAG | Kubota
Telescopic Side Swing
Standard
Operation Type
Pilot

GE-30 Attachments

Buckets - Width Teeth
Whether it's construction, landscaping, demolition or more, this bucket is your productivity, helping you get more work done faster!
Wood Grabbers
Elevate your machine's efficiency and performance across forestry, site cleanup, recycling, landscaping, and agricultural projects with mini excavator grabber!
Hydraulic Breaker
Handling precision drilling and breaking tasks becomes a breeze, making this concrete breaker the go-to choice for landscaping, construction, and light demolition.
Hydraulic Auger Drill
With a responsive 40-82 rpm speed, this attachment efficiently handles projects like installing fence posts, foundations, tree planting, soil sampling, and much more.
Thumb Grab Bucket
This hydraulic thumb clip seamlessly works with a bucket to dealing with irregularly shaped materials effectively.
Ripper
Its pointed end easily penetrates tough or frozen terrains such as rock, shale, or permafrost, creating holes or breaking up surfaces without damaging the surrounding area.
