Mini Excavators GE-30
Mini Excavator Kubota Engine
Support 1-Year Warranty
Lifetime Tech Support
Video online inspection
GE-34 compact design makes it the perfect choice for projects where space is limited, while the advanced hydraulic system ensures smooth and precise digging performance.
GE-34 Overview
easy maintenance and user-friendly interface

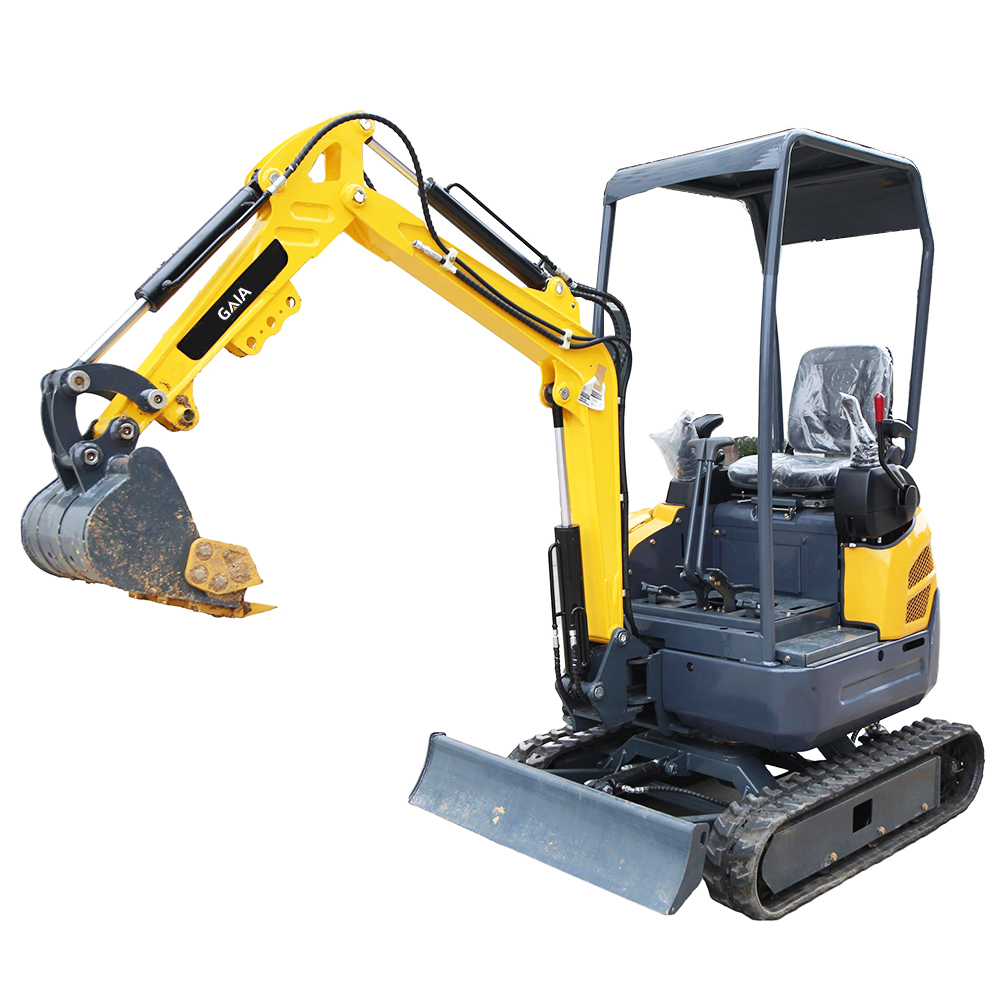

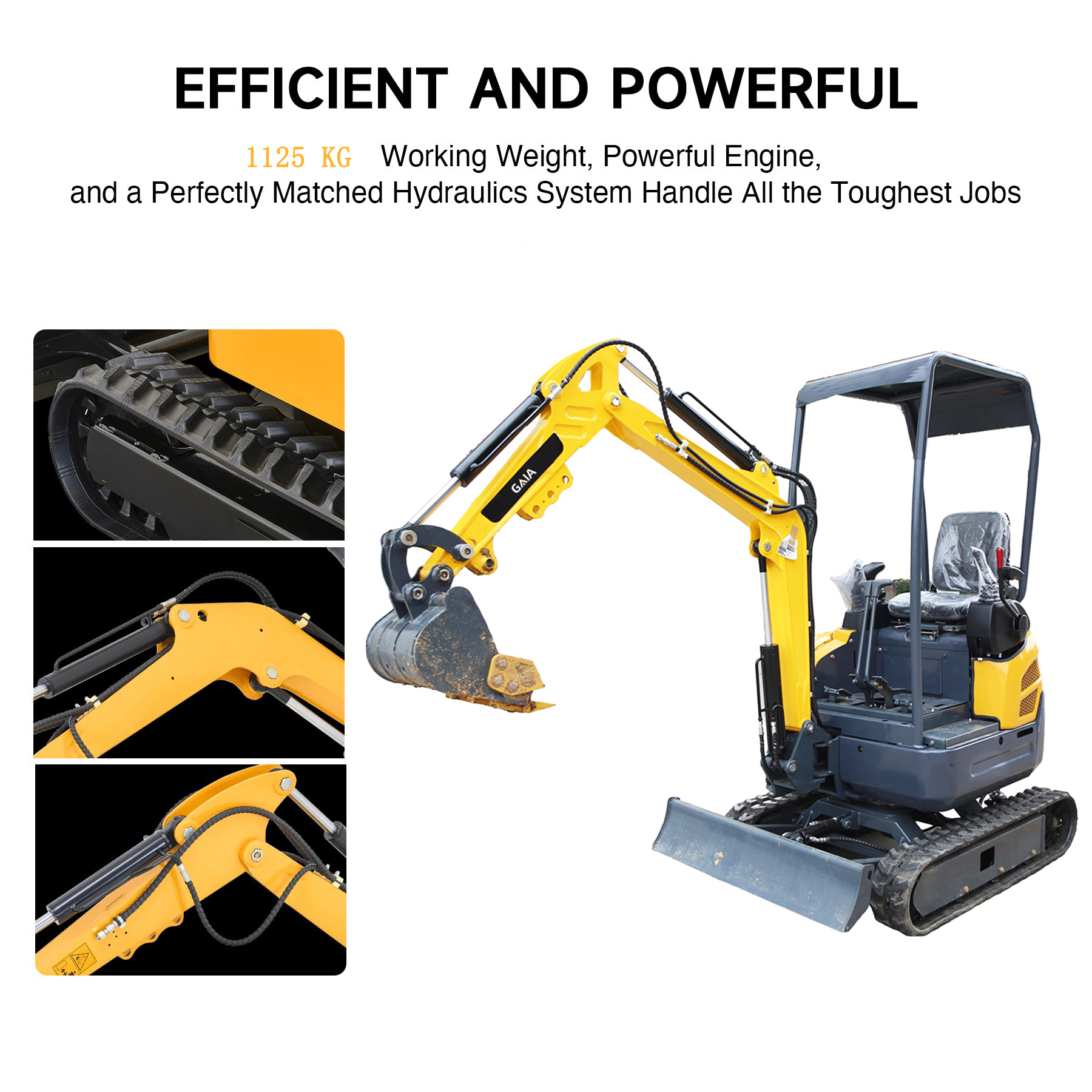

This mini excavator is engineered for maximum versatility and reliability on any job site. Its compact design makes it the perfect choice for projects where space is limited, while the advanced hydraulic system ensures smooth and precise digging performance. With easy maintenance access and a user-friendly interface, this machine is built for efficiency. Whether used in landscaping, construction, or utility work, the mini excavator delivers power, control, and durability in one compact package.
High Performance
Capable of tackling demanding excavation tasks efficiently.
6 and More Attachments
Support more Attachments, meets all your construction Needs
30% Lower Ownership Costs
Top quality with low maintenance for high returns and less investment
Kubota 20 HP Efficient Engine

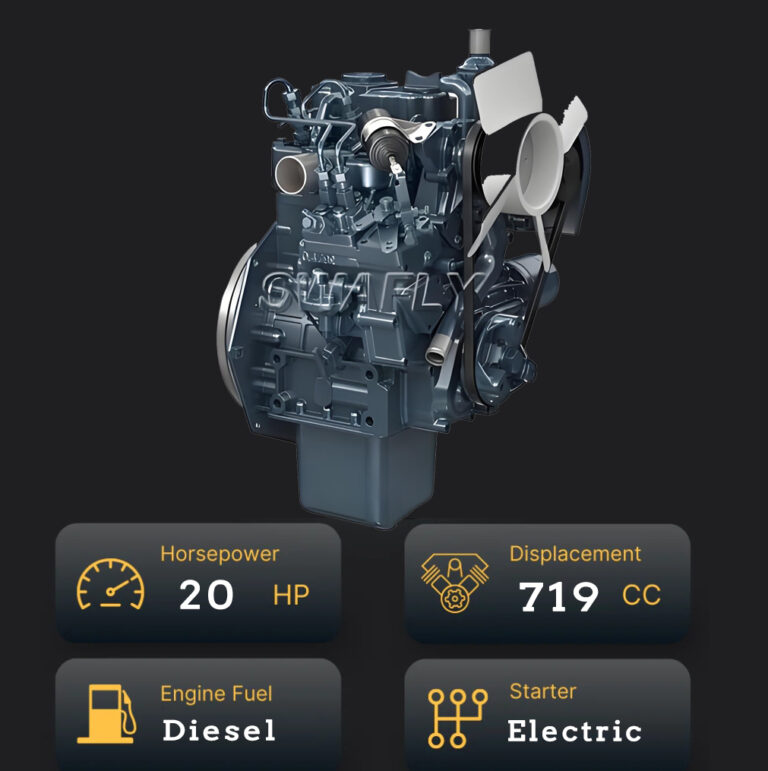

This mini digger features a premium Kubota 20 HP / 3600 rpm engine for powerful yet fuel efficient operation and superior heat dispensation. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.
Multiple Attachments Adapted

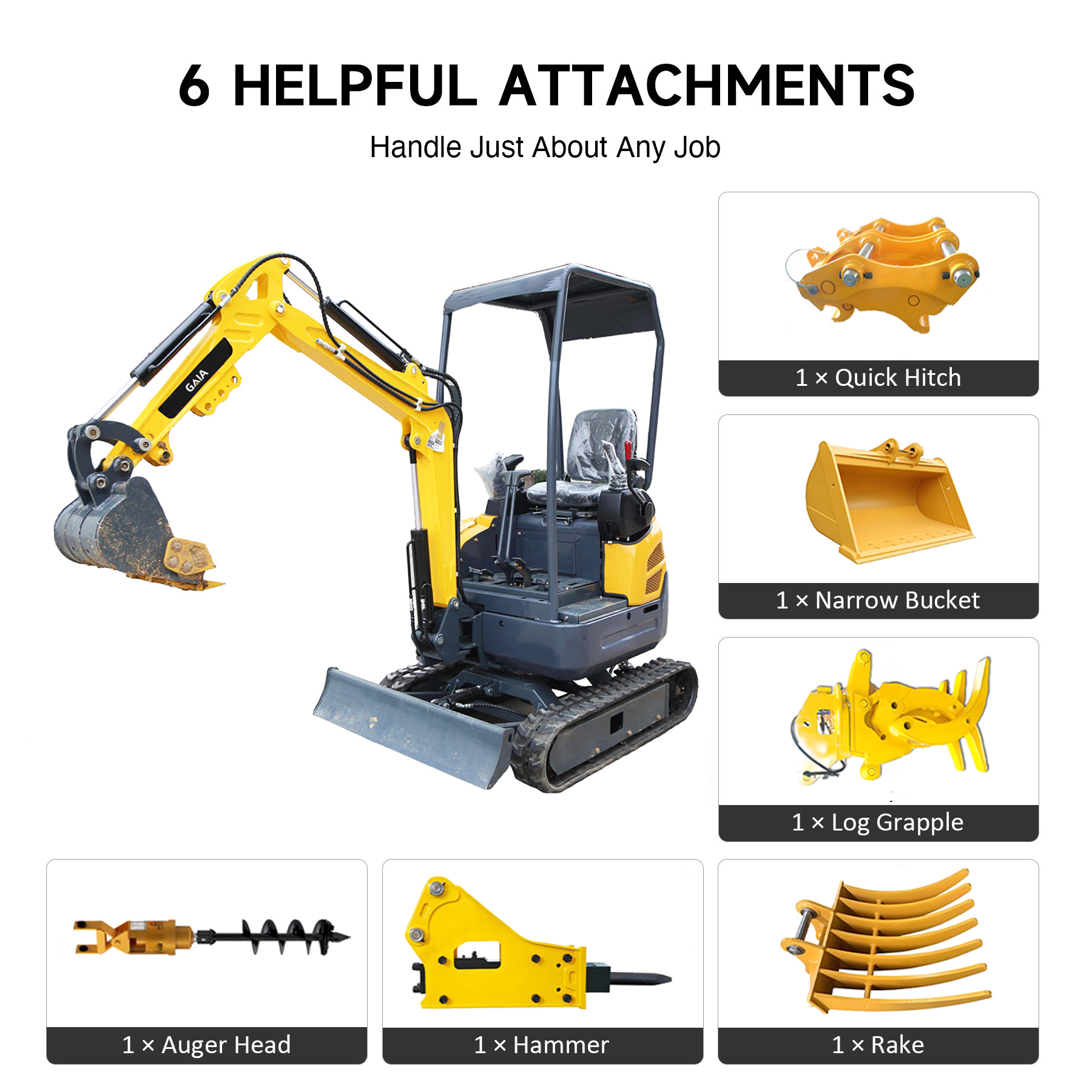

It can be adapted to a variety of attachments, such as: Auger Drill Head, Hydraulic Breaker, Rakes,Wood Grabbers, Narrow Buckets, Quick Hitch etc. which can be used in various work scenarios to meet your needs
GE-34 Specifications
Key Specifications
|
Operating Weight |
1125 -1250 kg |
|
Maximum Digging Height (A) |
2565 mm |
|
Maximum Dump Clearance (B) |
1670 mm |
|
Max. Digging Depth (C) |
1730 mm |
|
Maximum Vertical Digging Depth (D) |
1600 mm |
|
Maximum Digging Radius (E) |
3215 mm |
|
Minimum Turning Radius (F) |
1495 mm |
|
Horsepower |
20.0 HP |
Engine
|
Engine Model |
Kubota |
|
Engine Power |
15.0 kW |
|
Engine Fuel |
Diesel |
|
Emissions |
Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. |
|
Rated Speed |
3500 r/min |
Performance
|
Weight Class |
1 ton |
|
Travel Speed - High |
2.9 - 5.5 km/h |
|
Minimum Ground Clearanceh |
140 mm |
|
Maximum Dump Clearance |
1670 mm |
|
Minimum Turning Radius |
1495 mm |
|
Maximum Digging Radius |
3215 mm |
Capacities
|
Bucket Capacity |
0.03 m³ |
|
Fuel Tank Volume |
N/A |
|
Fuel Consumption |
N/A |
|
Fuel Type |
Diesel |
Hydraulic System
|
Hydraulic Tank Volume |
10.7 L |
|
Main Pump Flow |
N/A |
|
Rated Pressure |
13 MPa |
|
Max. Pressure |
20 MPa |
Dimension
|
Length |
2420 mm |
|
Width (b) |
1100 mm |
|
Height (c) |
2000 mm |
|
Maximum Digging Radius |
3215 mm |
|
Wooden Length (a) |
2955 mm |
|
Track (g) |
1082 mm |
|
Gauge Width (h) |
895.5 mm |
|
Platform Ground Clearance (i) |
400 mm |
|
Turntable Width (d) |
940 mm |
|
Total Chassis Width (e) |
1100 mm |
Features
|
Certifications |
CE, ISO9001:2015 |
|
Air Conditioning |
Optional |
|
Cab Enclosure |
Optional |
|
Quick Tach System |
Optional |
|
Rubber Track |
Standard |
|
Optional Engine |
B&S | HONDAG | Kubota |
|
Telescopic Side Swing |
Optional |
|
Operation Type |
Pilot |
GE-34 Attachments
Buckets - Width Teeth
Wood Grabbers
Hydraulic Breaker
Hydraulic Auger Drill
Thumb Grab Bucket
