Mini Excavators GE-30
1.8 ton Mini Excavator Kubota Engine
Support 1-Year Warranty
Lifetime Tech Support
Video online inspection
GE-46 mini excavator combines power and versatility. it excels in tight spaces. Compatible with a wide range of attachments.

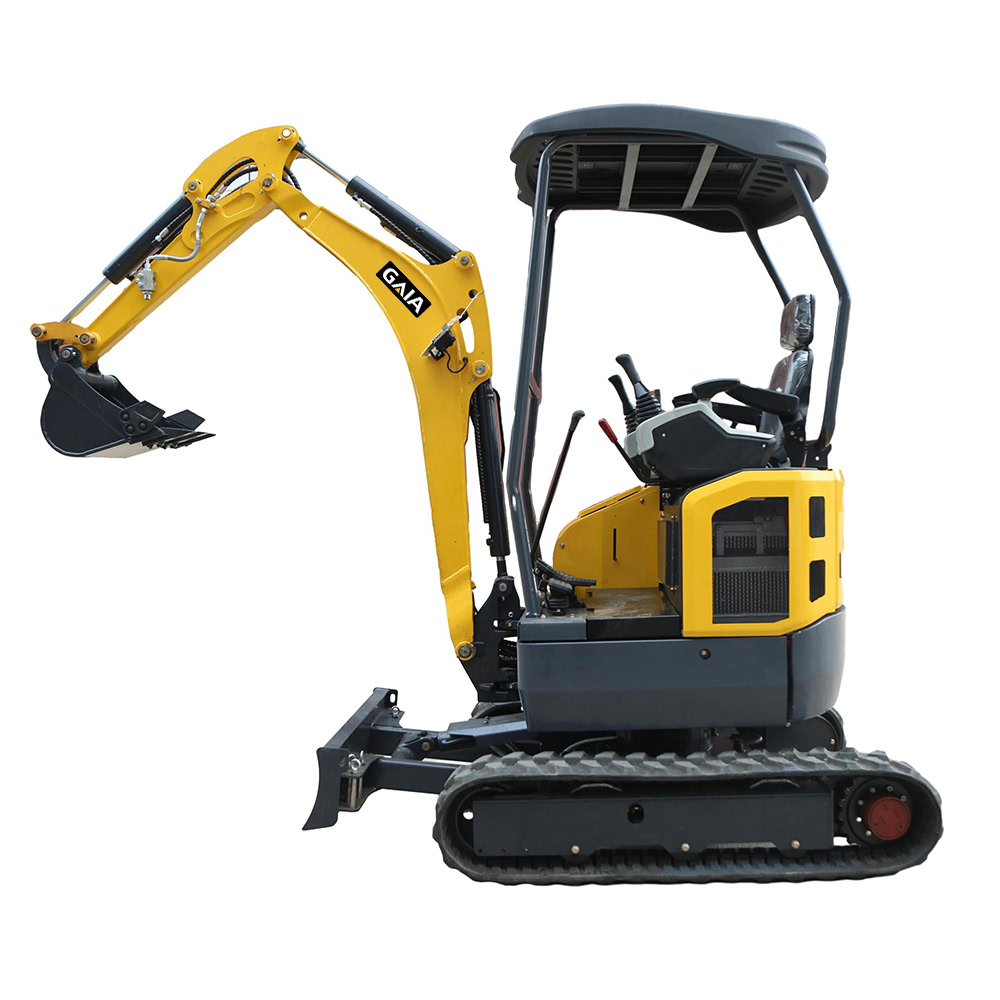

GE-46 Overview
Advanced Hydraulic System
GE46 is engineered for maximum versatility and reliability on any job site. Its compact design makes it the perfect choice for projects where space is limited, while the advanced hydraulic system ensures smooth and precise digging performance. With easy maintenance access and a user-friendly interface, this machine is built for efficiency. Whether used in landscaping, construction, or utility work, the mini excavator delivers power, control, and durability in one compact package.
Operator Comfort
Ergonomic cab design enhances comfort during long working hours.
6 and More Attachments
Support more Attachments, meets all your construction Needs
30% Lower Ownership Costs
Top quality with low maintenance for high returns and less investment

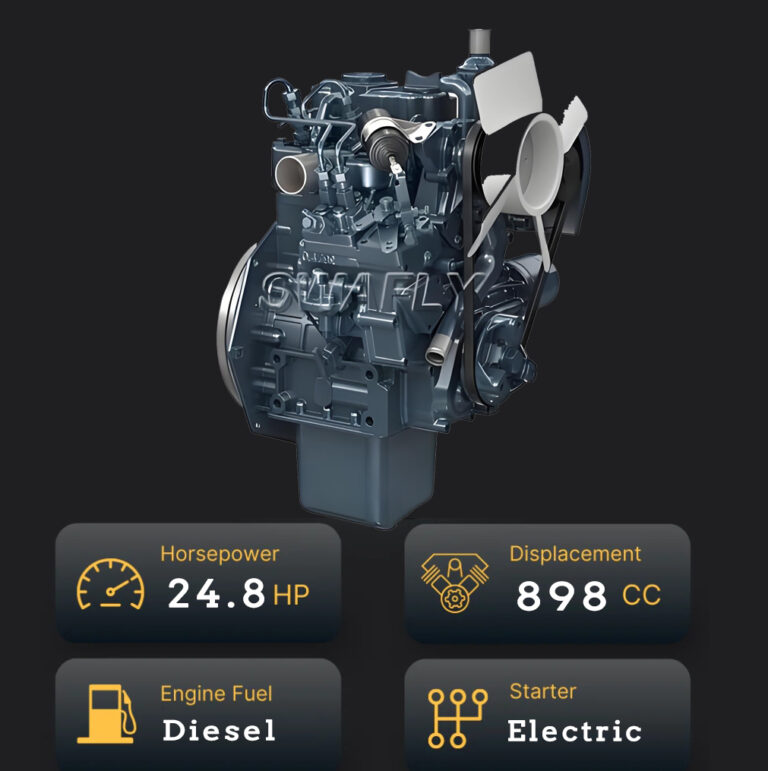

Kubota Efficient Engine
This mini digger features a premium Kubota 24.8 hp engine for powerful yet fuel efficient operation and superior heat dispensation. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.
Multiple Attachments Adapted

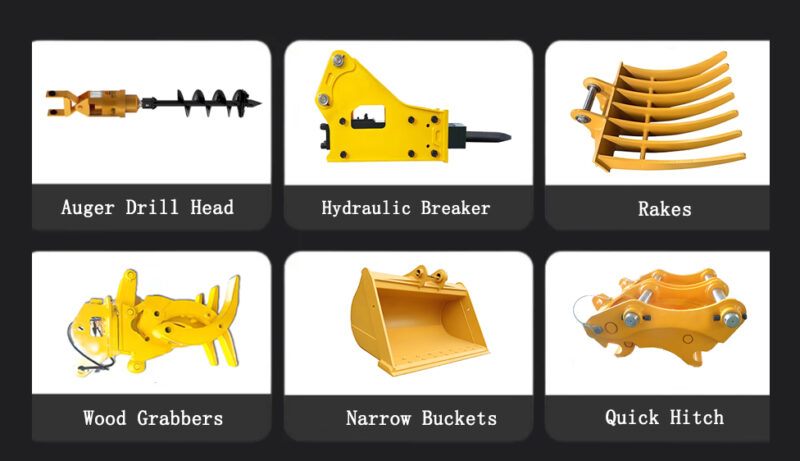

It can be adapted to a variety of attachments, such as: Auger Drill Head, Hydraulic Breaker, Rakes,Wood Grabbers, Narrow Buckets, Quick Hitch etc. which can be used in various work scenarios to meet your needs
GE-46 Specifications

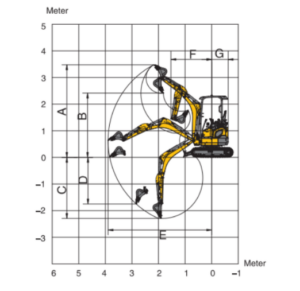

Key Specifications
|
Operating Weight |
1800 - 1850 kg |
|
Maximum Digging Height (A) |
3535 mm |
|
Maximum Dump Clearance (B) |
2445 mm |
|
Max. Digging Depth (C) |
2270 mm |
|
Maximum Vertical Digging Depth (D) |
1910 mm |
|
Maximum Digging Radius (E) |
3910 mm |
|
Minimum Turning Radius (F) |
1600 mm |
|
Horsepower |
24.8 HP ( 18.5 kW ) |
Engine
|
Engine Model |
Kubota |
|
Engine Power |
12.1 - 18.5 kW |
|
Engine Fuel |
Diesel |
|
Emissions |
EPA/CARB TiAI4 Germany 4/Eu StiPev Euro 5/China GB3 National III |
|
Rated Speed |
3600 r/min |
Performance
|
Weight Class |
1 ton |
|
Travel Speed - High |
3.0-6.0 km/h |
|
Minimum Ground Clearance |
145 mm |
|
Maximum Dump Clearance |
2445 mm |
|
Minimum Turning Radius |
1600 mm |
|
Maximum Digging Radius |
3910 mm |
Capacities
|
Bucket Cpacity |
0.04 m³ |
|
Fuel Tank Volume |
24 L |
|
Fuel Consumption |
N/A |
|
Fuel Type |
Diesel |
Hydraulic System
|
Hydraulic Tank Volume |
N/A |
|
Main Pump Flow |
N/A |
|
Rated Pressure |
N/A |
|
Max. Pressure |
N/A |

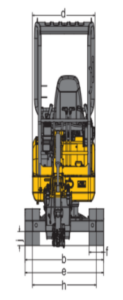

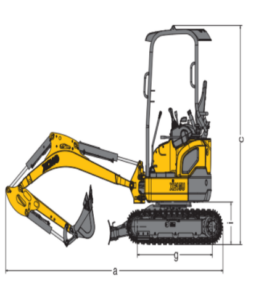

Dimension
|
Length |
2360 mm |
|
Width (b) |
990 - 1330 mm |
|
Height (c) |
2405 mm |
|
Minimum Ground Clearance |
145 mm |
|
Maximum Vertical Dig Depth |
1760 mm |
|
Maximum Digging Radius |
2490 mm |
|
Wooden Length (a) |
3360 mm |
|
Track (g) |
1230 mm |
|
Gauge Width (h) |
760 - 1070 mm |
|
Platform Ground Clearance (i) |
435 mm |
|
Turntable Width (d) |
996 mm |
|
Total Chassis Width (e) |
990 mm |
Features
|
Certifications |
CE, ISO9001:2015 |
|
Telescopic Side Swing |
Standard |
|
Air Conditioning |
Optional |
|
Cab Enclosure |
Optional |
|
Quick Tach System |
Optional |
|
Rubber Track |
Standard |
|
Optional Engine |
B&S | HONDAG | Kubota |
|
Operation Type |
Pilot |
GE-46 Attachments
Buckets - Width Teeth
Wood Grabbers
Hydraulic Breaker
Hydraulic Auger Drill
Thumb Grab Bucket
