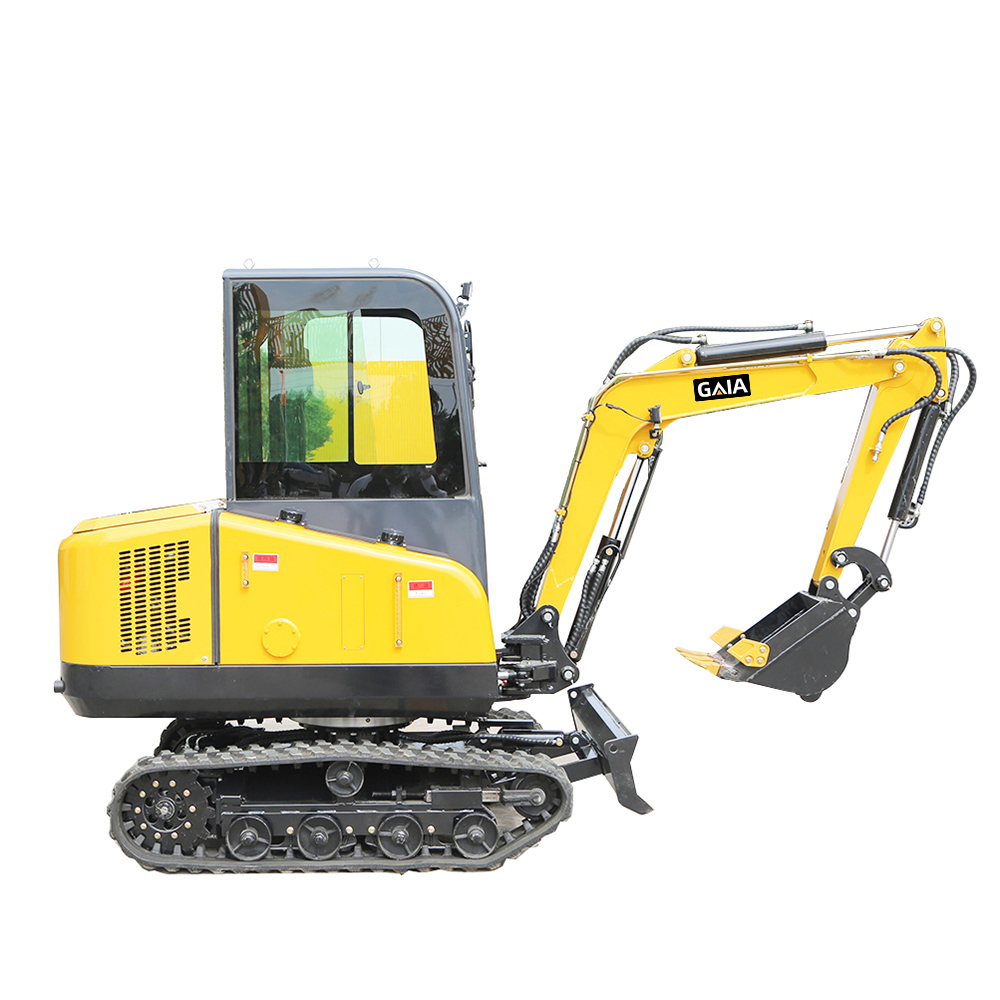

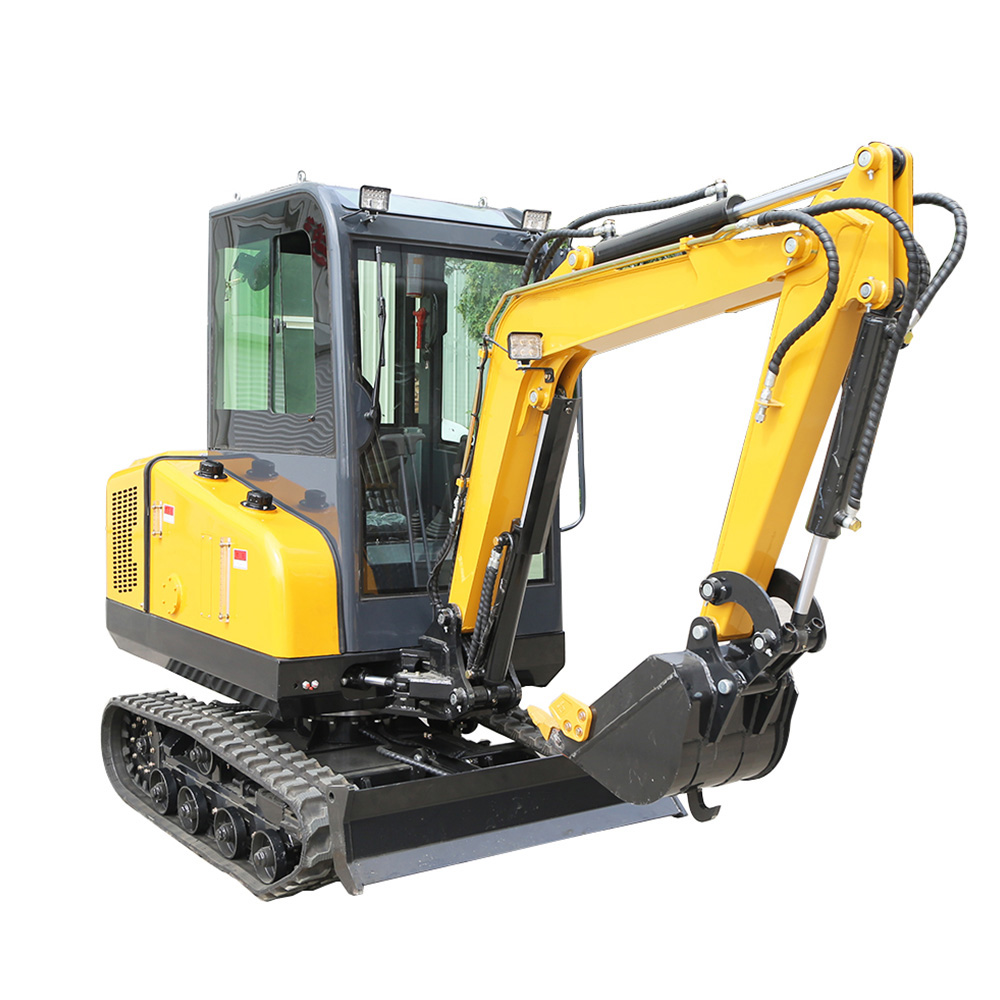

Mini Excavators GE-30
2.0 ton Small Excavator Kubota Engine
Support 1-Year Warranty
Lifetime Tech Support
Video online inspection
GE-50 is equipped with a high-performance engine, providing the strength needed for demanding jobs while ensuring smooth and precise operation.
GE-50 Overview
high-performance engine
GE-50 compact form allows access to tight spaces without compromising on power or stability. The machine is equipped with a high-performance engine, providing the strength needed for demanding jobs while ensuring smooth and precise operation. Perfect for landscaping, trenching, and site preparation, this excavator is versatile enough for any construction environment. The cabin is designed with operator comfort in mind, reducing fatigue during long workdays, and the overall structure is crafted to minimize maintenance, maximizing uptime on the job site.
Precision Control:
Offers smooth and accurate operation for intricate tasks.
6 and More Attachments
Support more Attachments, meets all your construction Needs
30% Lower Ownership Costs
Top quality with low maintenance for high returns and less investment

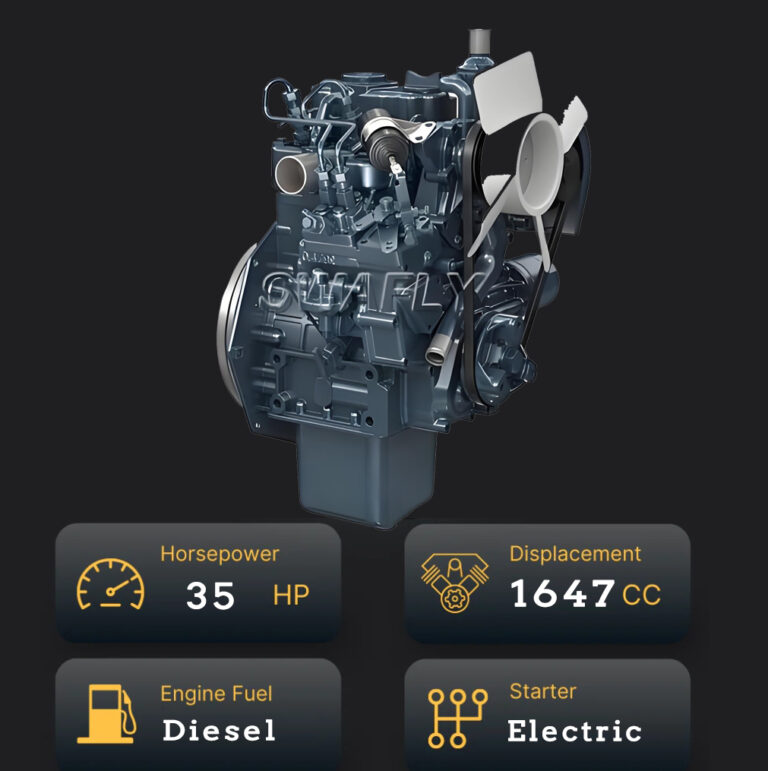

Kubota Efficient Engine
This mini digger features a premium Kubota 35 hp engine for powerful yet fuel efficient operation and superior heat dispensation. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.

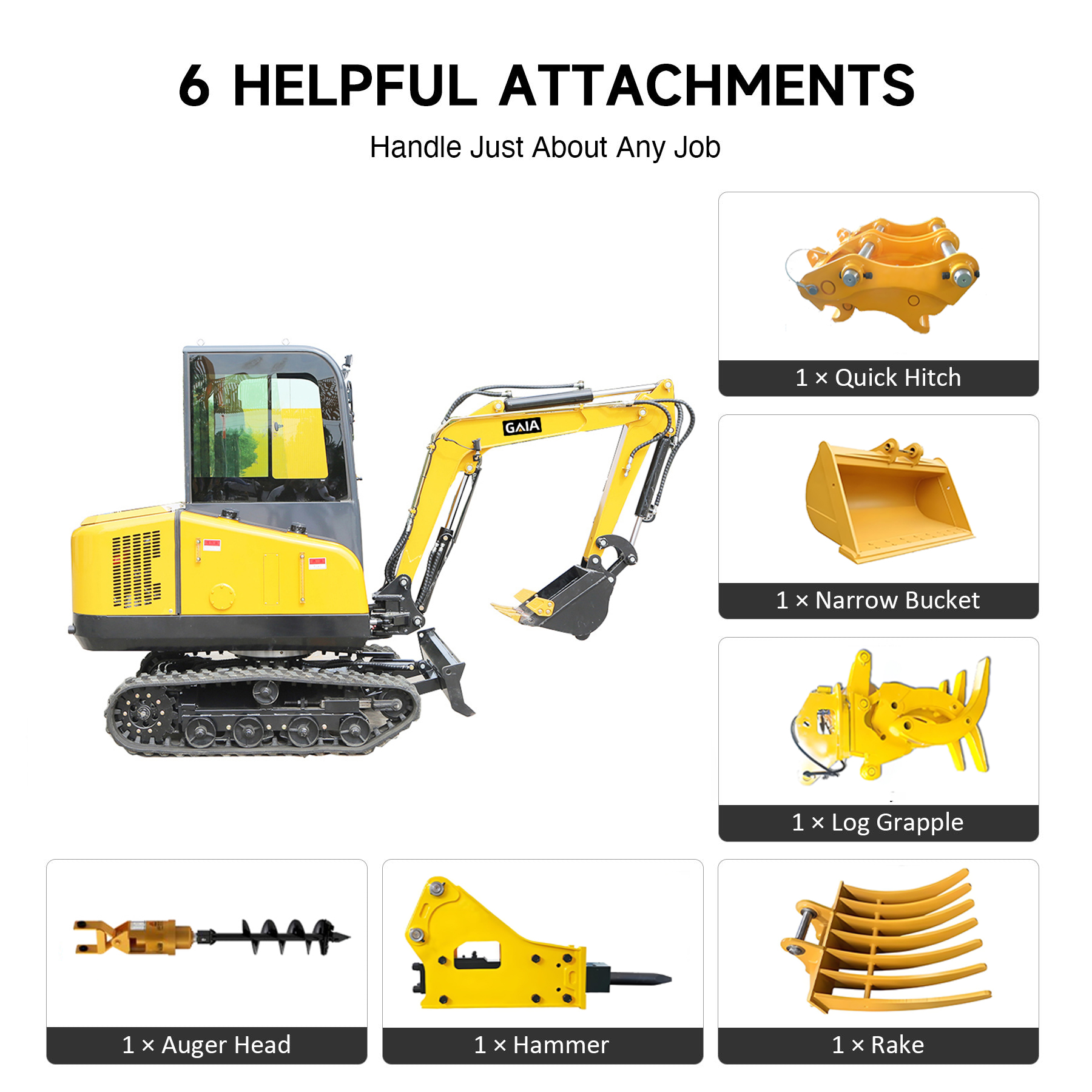

Multiple Attachments Adapted
It can be adapted to a variety of attachments, such as: Auger Drill Head, Hydraulic Breaker, Rakes,Wood Grabbers, Narrow Buckets, Quick Hitch etc. which can be used in various work scenarios to meet your needs
GE-20 Specifications
Key Specifications
|
Operating Weight |
2015 - 2250 kg |
|
Maximum Digging Height (A) |
3200 mm |
|
Maximum Dump Clearance (B) |
2450 mm |
|
Max. Digging Depth (C) |
2350 mm |
|
Maximum Vertical Digging Depth (D) |
1740 mm |
|
Maximum Digging Radius (E) |
3100 mm |
|
Minimum Turning Radius (F) |
2300 mm |
|
Horsepower |
35 HP ( 26.1 kW ) |
Engine
|
Engine Model |
Kubota |
|
Engine Power |
26.1 kW |
|
Engine Fuel |
Diesel |
|
Emissions |
EPA/CARB TiAI4 Germany 4/Eu StiPev Euro 5/China GB3 National III |
|
Rated Speed |
3600 r/min |
Performance
|
Weight Class |
2 ton |
|
Travel Speed - High |
3.0 -7.1 km/h |
|
Minimum Ground Clearance |
240 mm |
|
Maximum Dump Clearance |
2450 mm |
|
Minimum Turning Radius |
2300 mm |
|
Maximum Digging Radius |
3100 mm |
Capacities
|
Bucket Capacity |
0.05 m³ |
|
Fuel Tank Volume |
40 L |
|
Fuel Consumption |
N/A |
|
Fuel Type |
Diesel |
Hydraulic System
|
Hydraulic Tank Volume |
N/A |
|
Main Pump Flow |
N/A |
|
Rated Pressure |
N/A |
|
Max. Pressure |
N/A |
Dimension
|
Length |
3500 mm |
|
Width (b) |
1300 mm |
|
Height (c) |
2300 mm |
|
Maximum Digging Radius |
3100 mm |
|
Wooden Length (a) |
4400 mm |
|
Track (g) |
1526 mm |
|
Gauge Width (h) |
1040 mm |
|
Platform Ground Clearance (i) |
570 mm |
|
Turntable Width (d) |
1200 mm |
|
Total Chassis Width (e) |
1300 mm |
Features
|
Certificates |
CE, ISO9001:2015 |
|
Air Conditioning |
Optional |
|
Cab Enclosure |
Optional |
|
Quick Tach System |
Optional |
|
Rubber Track |
Standard |
|
Optional Engine |
B&S | HONDAG | Kubota |
|
Telescopic Side Swing |
Side swing Standard |
|
Operation Type |
Mechanical |
GE-20 Attachments
Buckets - Width Teeth
Wood Grabbers
Hydraulic Breaker
Hydraulic Auger Drill
Thumb Grab Bucket
